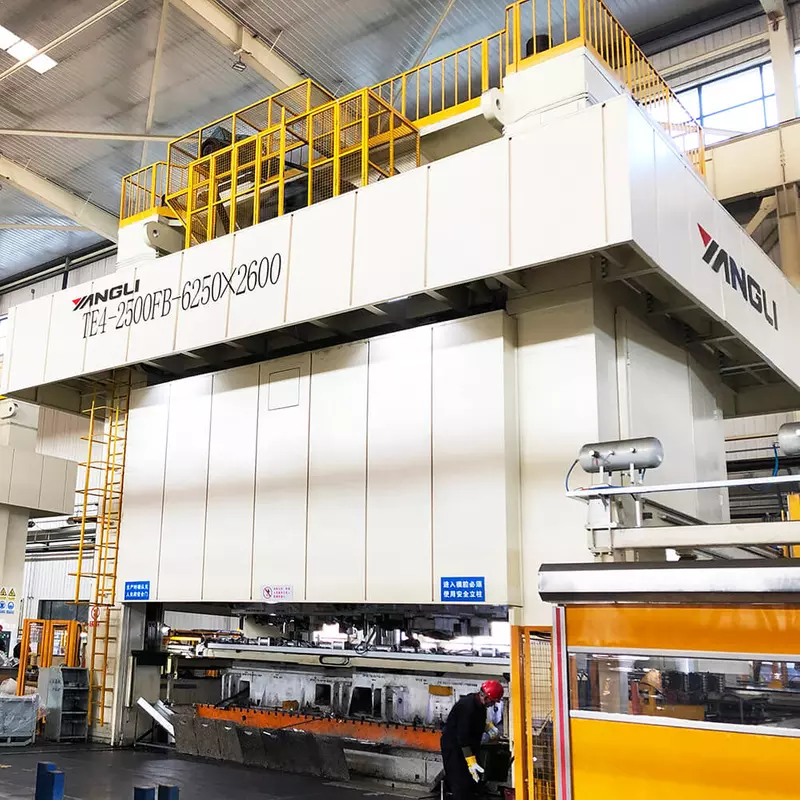

TE4 Series Straight Four Point Transfer Press

◆  The FEM optimizes the larger and most important components.

◆  The welded crown, column, and bed are pre-tightened using tie rod bolts; they are pressed with great intensity and rigidity.

◆  The asynchronous drive minimizes lateral force on the small slide.

◆  The drive gear is made of high-strength alloy steel, while the high-speed gear pair features a herringbone gear. The low-speed gear pair has a tooth ground and hardened straight gear.

◆  The slide is guided by an eight-sided rectangular guide.

◆  The slide features a pneumatic friction clutch brake for partial revolution, with the option of an imported wet type clutch brake.

◆  The hydraulic overload protector is highly sensitive.

◆  Automatic oil lubrication is provided.

◆  The machine is equipped with an imported safety dual solenoid valve.

◆  There are two control options: electronic cam and mechanical cam.

◆  Optional features include an air cushion, tonnage gauge, and anti-vibration pads.
