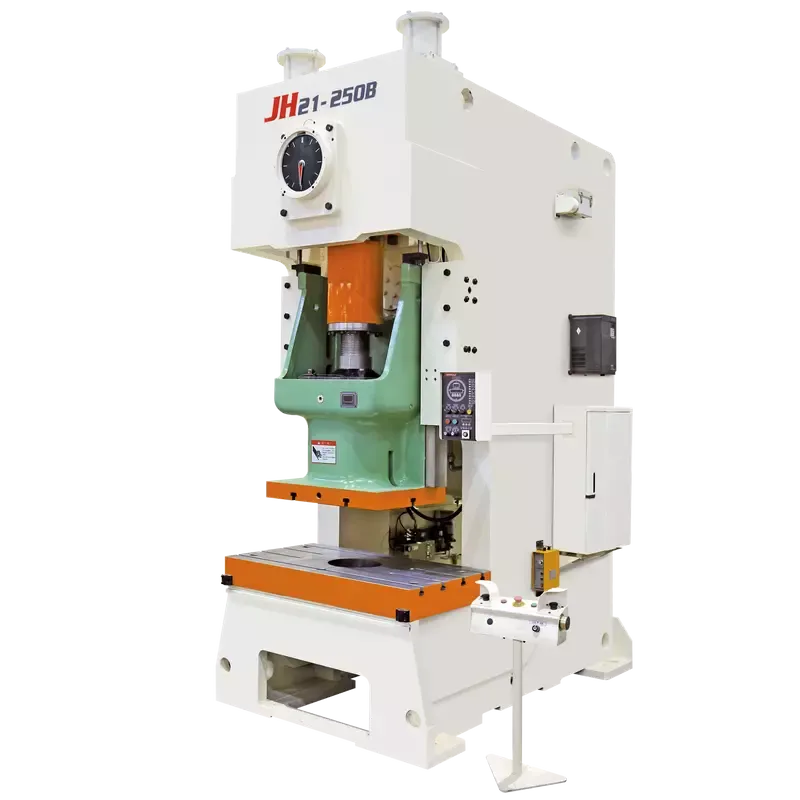

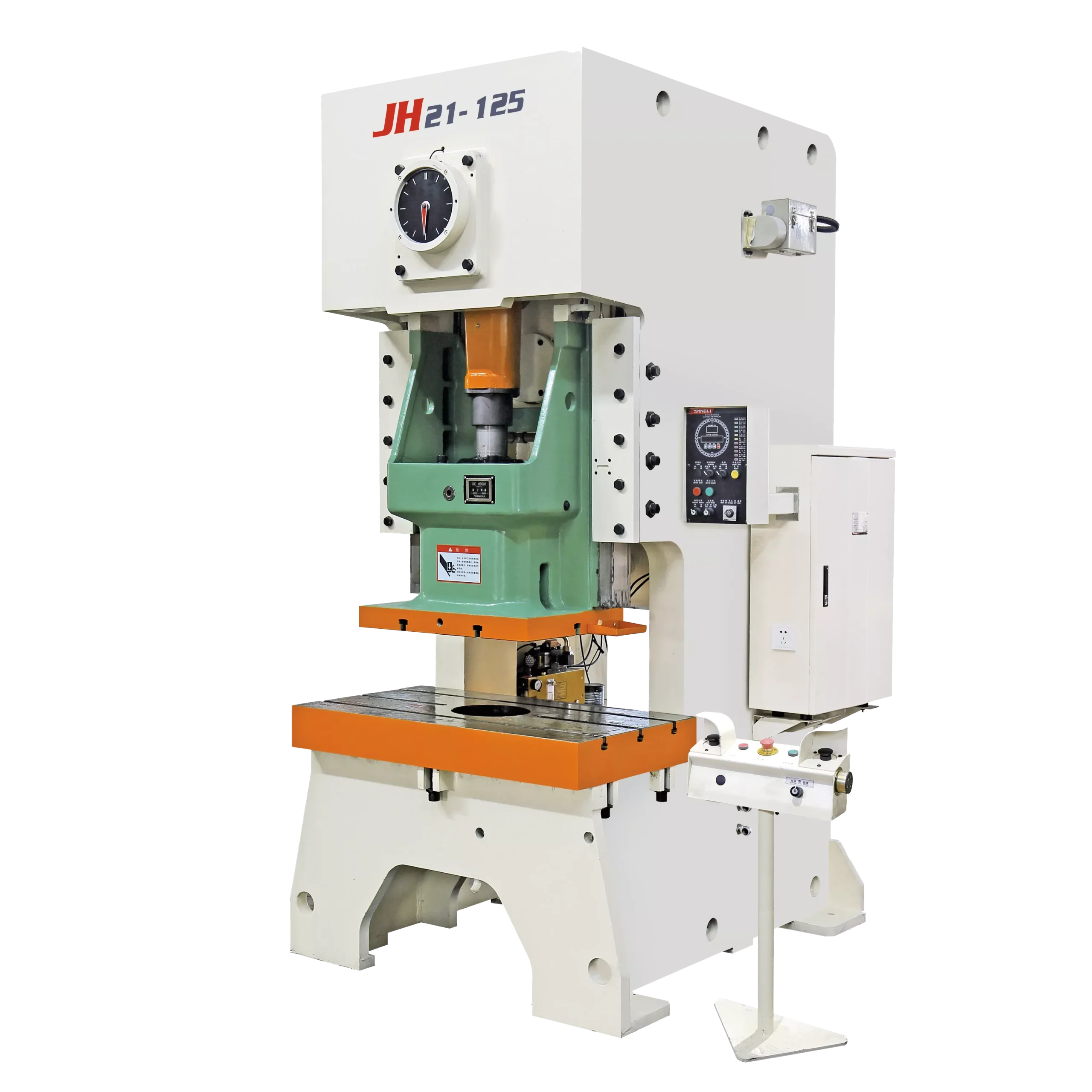

JH21 Series Open Front Fixed Bed Press With Hydraulic Overload Protector

◆  The frame is made of high-intensity welded steel.

◆  The main motor is manufactured by SIEMENS.

◆  The machine uses a dry pneumatic friction clutch and brake.

◆  The gear is immersed in oil for lubrication.

◆  The guide is a six-face rectangle and is lengthened. JH21-315B/400B uses an eight-face lengthened guide.

◆  The machine has a hydraulic overload protector.

◆  JH21-16~45 uses manual die height adjustment while JH21-16/25/45 has a scale display.

◆  JH21-63 presses and larger models use electrical die height adjustment with digital display.

◆  JH21-45 has an optional electrical die height adjustment with numeric display.

◆  Except for JH21-16, the machine has a lifting balance cylinder.

◆  The machine uses an imported dual solenoid valve.

◆  There is an electrical grease forced lubrication system.

◆  The balance cylinder uses manual lubrication.

◆  (1) set blowing device.

◆  There is an integrated interface (electrical cam included).

◆  The machine uses a PLC of international brand.

◆  The button, switch, and air circuit breaker are of international brand.

◆  Optional features include a wet clutch, air cushion, automatic feed shaft device, light curtain, slide knockout device, and automatic devices.
