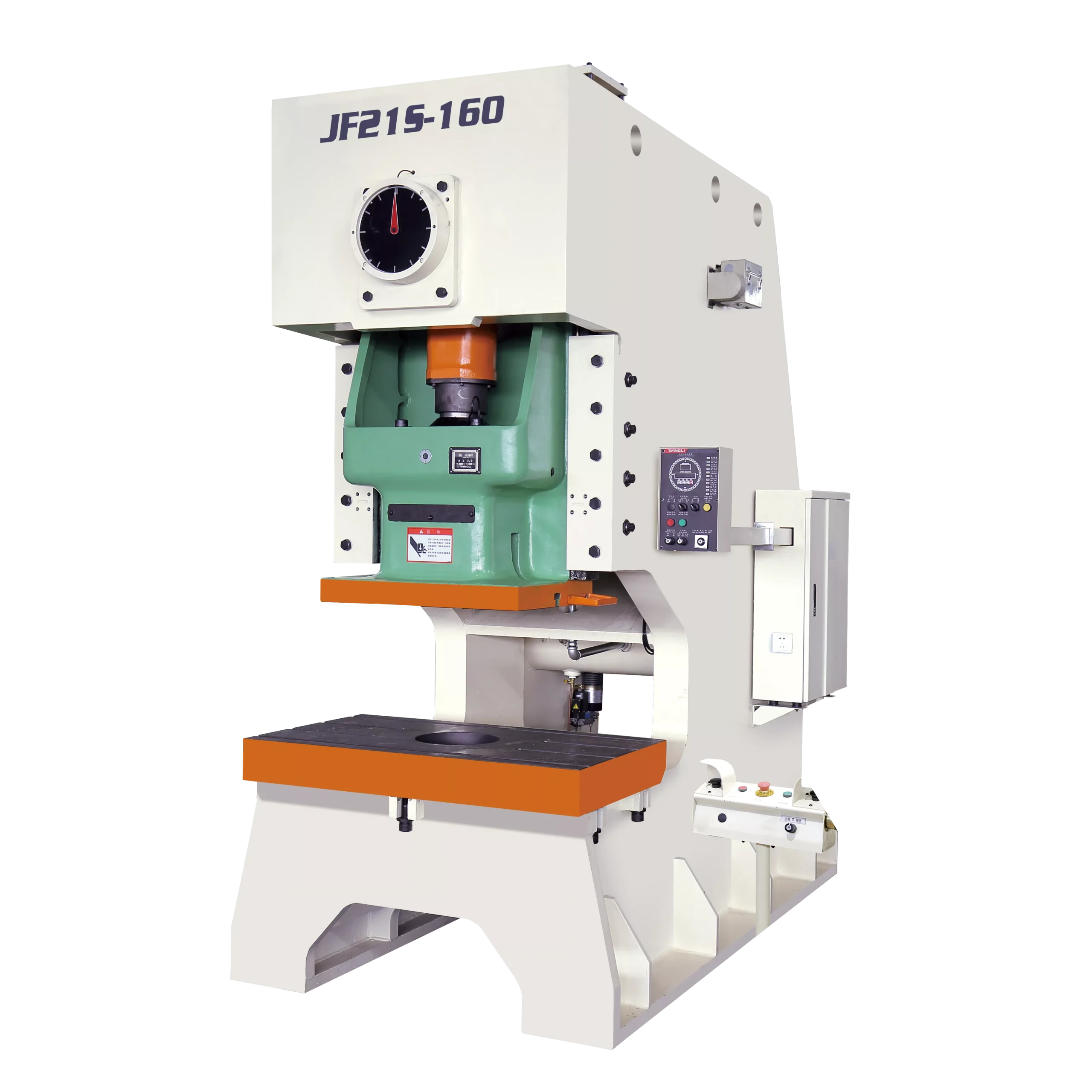

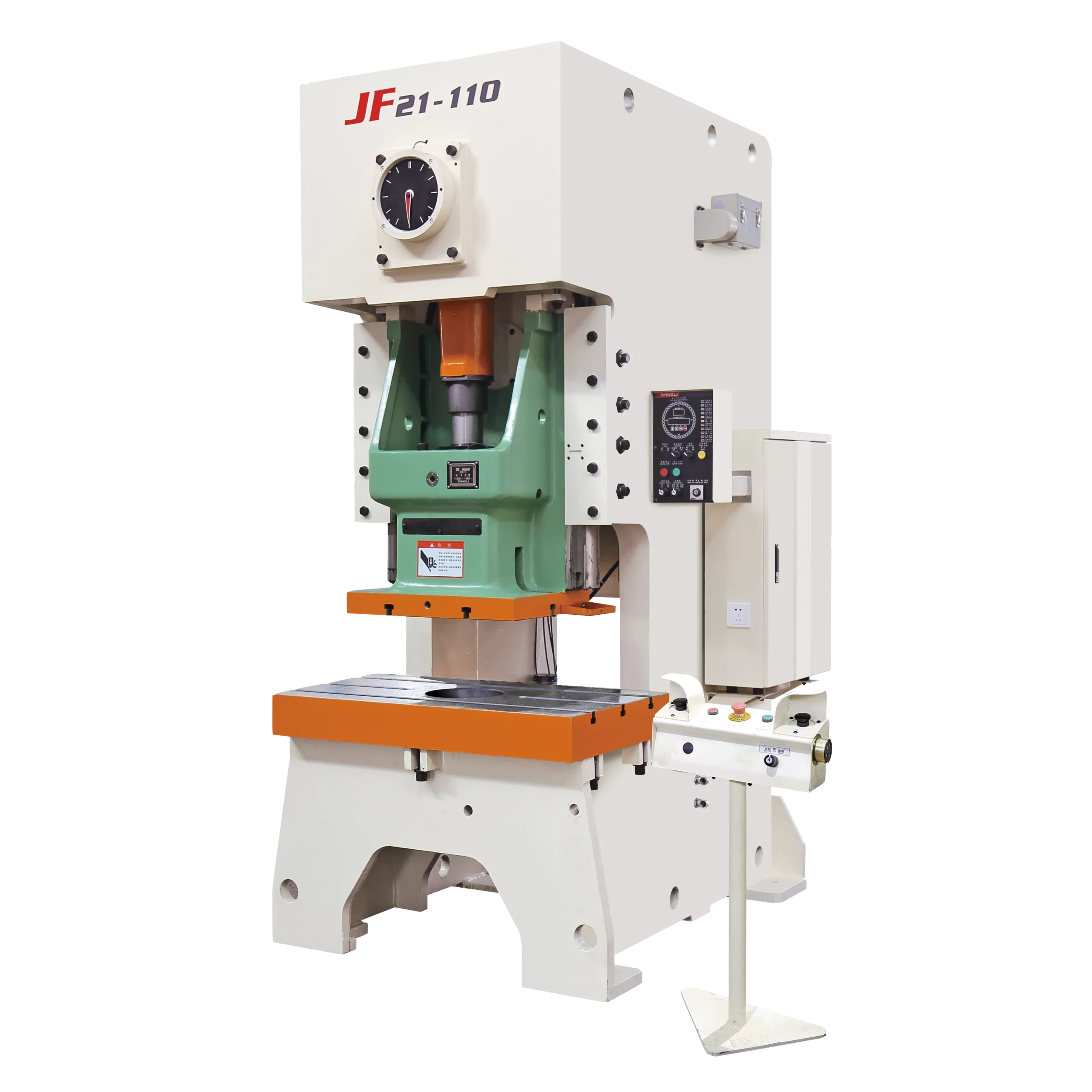

JF21 Series Open Front Press With Rigid Overload Protector And Fixed Bed

◆  The steel structure is joined together using strong welding techniques.

◆  The main engine is produced by SIEMENS.

◆  A dry pneumatic friction clutch and brake are combined together.

◆  The gear is submerged in oil.

◆  The guide is rectangular and extended on all six sides.

◆  An overload protector offers solid protection.

◆  For JF21-16~45 models, the height of the mold can be manually adjusted, with a scale display for JF21-16/25/45.

◆  For JF21-63 presses and larger models, the mold height can be adjusted electronically, with a digital display.

◆  For JF21-45, the mold height can be adjusted electronically (optional), with a numerical display.

◆  A balancing cylinder for lifting is included, except for JF21-25.

◆  An imported dual solenoid valve is used.

◆  An electrical system is used to force grease lubrication.

◆  The balancing cylinder requires manual lubrication.

◆  A blowing device is included in the set.

◆  An integrated interface is provided, which includes an electrical cam.

◆  The PLC is from a well-known international brand.

◆  Buttons, switches, and air circuit breakers are from recognized international brands.

◆  Optional features include an air cushion, automatic feed shaft device, light curtain, slide knockout device, and automatic.
